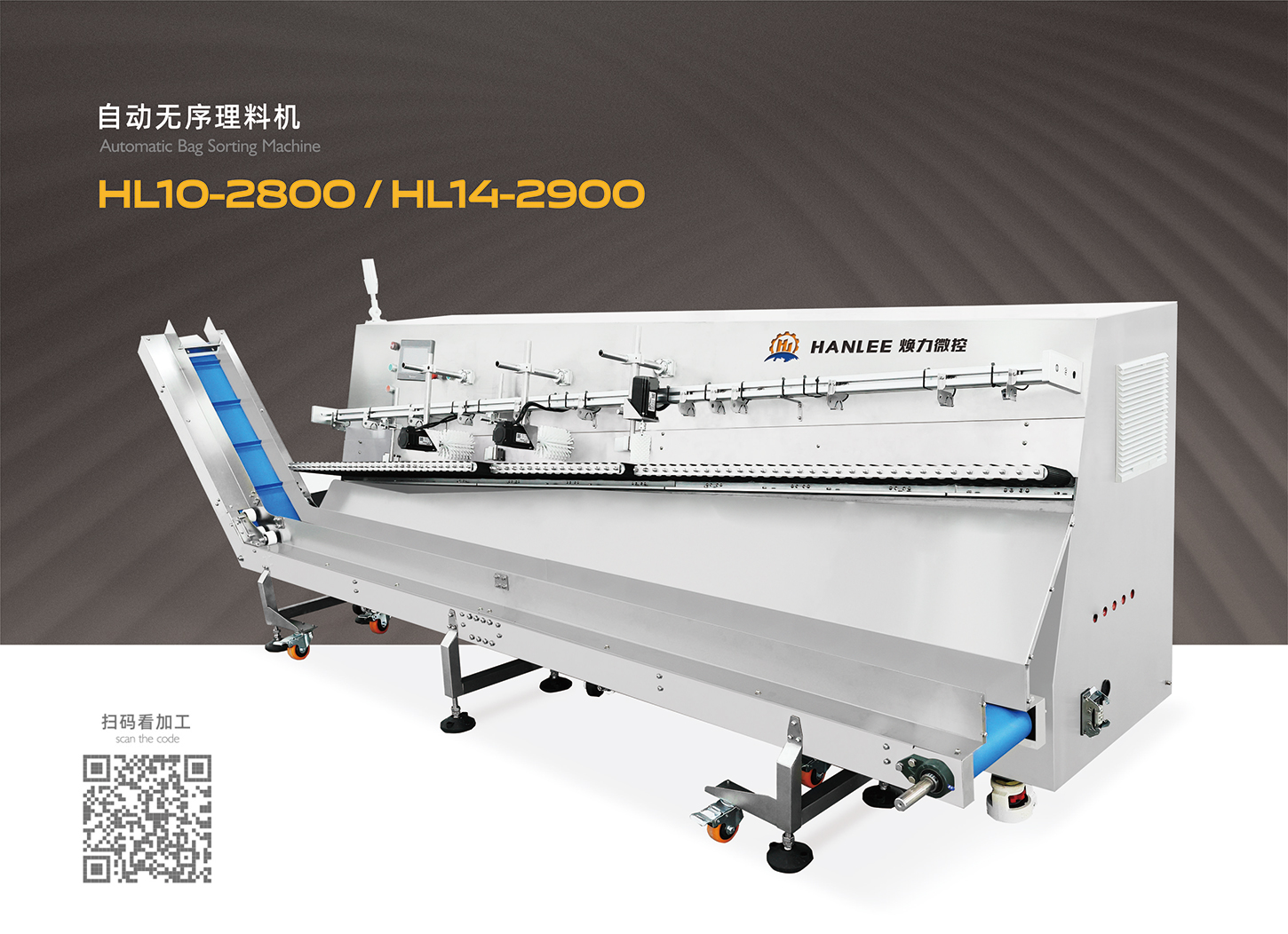

Disorderly material handling machine
Model: HL10-2800 / HL14-2900
| Model | HL10-2800 | HL14-2900 |
| Speed | 80-120 packets/min | 100-200 packets/min |
| Product size | Length: material within 145-290mm | |
| Drum size | φ29mm | |
| Power supply and Power | AC380 50Hz 4.7KW | AC380 50Hz 6.2KW |
| Main engine size | 2887x841x1098 mm | 2980x1400x1770mm |
| Weight | 470kg | 650kg |
| Control mode | Ten servo control | Fourteen servo control |
| The rear segment configures the device | The same direction machine, the same plane machine, the counting machine, the lifting machine, the vertical bag device + the centralized push machine | |
